Building a Basic VE Workflow
The first step is to select “Cell” > “Run All” from the toolbar. This will initialize all the widgets and allow you to interact with the unit operation options via the GUI controls.
[1]:
from ipywidgets import *
from IPython.display import HTML, clear_output
from virteng.WidgetFunctions import WidgetCollection, OptimizationWidget
from virteng.OptimizationFunctions import Optimization
from virteng.Utilities import get_host_computer
from Models_classes import make_models_list
#================================================================
# See if we're running on HPC or on a laptop
hpc_run = get_host_computer()
#================================================================
It looks like you're running this notebook on a laptop.
Operations requiring HPC resources will be disabled.
1. Model 1 (Arrhenius equation)
Set the options for the Model 1 below.
[2]:
#================================================================
# Create the collection of widgets for model1 options
model1_options = WidgetCollection()
options = {
'value': 10,
'max': 50,
'min': 1,
'description':'Frequancy factor',
'tooltip':'The frequancy factor (1/c). Must be in the range [1, 100]'
}
model1_options.freq_factor = OptimizationWidget('BoundedFloatText', options, controlvalue=False)
options = {
'value': 800,
'max': 10000,
'min':300,
'description':'Activation energy',
'tooltip':'The activation energy of the reaction (J/mol).',
}
model1_options.act_energy = OptimizationWidget('BoundedFloatText', options, controlvalue=True)
options = {
'value':200,
'max':1000,
'min':100,
'description':'Temperature',
'tooltip':'The temperature of the reaction (K).'
}
model1_options.temp = OptimizationWidget('BoundedFloatText', options, controlvalue=True)
#================================================================
# Display the widgets
model1_options.display_all_widgets()
#================================================================
2. Model 2 (concentration equation)
Set the options for the model 2.
[3]:
#================================================================
# Create the collection of widgets
model2_options = WidgetCollection()
model2_options.time = widgets.BoundedFloatText(
value = 1.0,
max = 1000.0,
min = 0.0,
description = 'Time',
tooltip = 'Time of the reaction (s).'
)
#================================================================
# Display the widgets
model2_options.display_all_widgets()
Run Model
When finished setting options for all unit operations, press the button below to run the complete model.
[4]:
#================================================================
run_button = widgets.Button(
description = 'Run All.',
tooltip = 'Execute the model start-to-finish with the properties specified above.',
layout = {'width': '200px', 'margin': '25px 0px 100px 170px'},
button_style = 'success'
)
#================================================================
# run_button_output = widgets.Output()
display(run_button)
#================================================================
# Define a function to be executed each time the run button is pressed
def run_button_action(b):
clear_output()
display(run_button)
verbose = True
# Initialize models
models_list = make_models_list([model1_options, model2_options], hpc_run)
for model in models_list:
model.run(verbose=verbose)
print(f"k = {model.ve.model1_out['k']}")
print(f"Final concentration is {model.ve.model2_out['C']}")
run_button.on_click(run_button_action)
#================================================================
k = 6.181109807155103
Final concentration is 0.0020681313535654295
Optimization example
[5]:
obj_widget = widgets.Dropdown(
options=[('Model2: C', ('model2_out', 'C')),
('Model1: k', ('model1_out', 'k'))
],
value=('model2_out', 'C'),
description='Objective:',
tooltip = 'Specifies the objective to use in optimization.'
)
display(obj_widget)
[6]:
import matplotlib.pyplot as plt
from matplotlib.colors import LogNorm
import os
import numpy as np
# Parameter sweep
#================================================================
sweep_button = widgets.Button(
description = 'Run Sweep.',
tooltip = 'Execute the model start-to-finish with the properties specified above.',
layout = {'width': '200px', 'margin': '25px 0px 100px 170px'},
button_style = 'primary'
)
#================================================================
# run_button_output = widgets.Output()
display(sweep_button)
#================================================================
# Define a function to be executed each time the run button is pressed
def sweep_button_action(b):
clear_output()
display(sweep_button)
Opt = Optimization(case_folder='./', options_list=[model1_options, model2_options], obj_widjet=obj_widget, hpc_run=hpc_run)
Opt.parameter_grid_sweep(nn=10, results_file='sweep_params.csv')
param_sweep_fn = 'sweep_params.csv'
if os.path.exists(param_sweep_fn):
with open(param_sweep_fn, 'r') as f:
firstline = f.readline().split(',')
sweeps = np.loadtxt(param_sweep_fn, delimiter=',', skiprows=1)
bounds = Opt.var_real_bounds
extent = bounds[0][0], bounds[0][1], bounds[1][0], bounds[1][1]
nn = int(np.sqrt(len(sweeps)))
C = sweeps[:, 3].reshape(nn, nn)
shw = plt.imshow(C.T, extent=extent, aspect='auto', origin='lower')

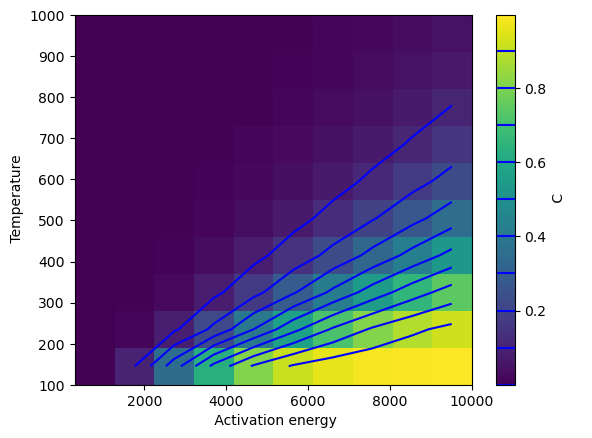

_cs2 = plt.contour(C.T, levels=np.arange(0, 1, 0.1), extent=extent, origin='lower', colors='blue')
bar = plt.colorbar(shw)
bar.add_lines(_cs2)
bar.set_label(firstline[-1])
plt.xlabel(firstline[1])
plt.ylabel(firstline[2])
sweep_button.on_click(sweep_button_action)
#===============================================================
Objective "C" is in model2_out.
On each iteration running n=2 models
Optimizing Activation energy.
Optimizing Temperature.
Finished 100 forward runs.
Finished sweeps!
[7]:
opt_button = widgets.Button(
description = 'Optimize.',
tooltip = 'Optimize for OUR using the conditions above as an initial guess.',
layout = {'width': '200px', 'margin': '25px 0px 25px 170px'},
button_style = 'warning'
)
#================================================================
display(opt_button)
#================================================================
# Define a function to be executed each time the run button is pressed
def opt_button_action(b):
clear_output()
display(opt_button)
params_filename = 'virteng_params_optimization.yaml'
opt_results_file = 'optimization_results.csv'
Opt = Optimization(case_folder='./', options_list=[model1_options, model2_options], obj_widjet=obj_widget, hpc_run=hpc_run)
opt_result = Opt.scipy_minimize(Opt.objective_function, opt_results_file=opt_results_file)
print(opt_result)
param_sweep_fn = 'sweep_params.csv'
if os.path.exists(param_sweep_fn):
with open(param_sweep_fn, 'r') as f:
firstline = f.readline().split(',')
sweeps = np.loadtxt(param_sweep_fn, delimiter=',', skiprows=1)
bounds = Opt.var_real_bounds
extent = bounds[0][0], bounds[0][1], bounds[1][0], bounds[1][1]
nn = int(np.sqrt(len(sweeps)))
C = sweeps[:, 3].reshape(nn, nn)
opt_results = np.loadtxt('optimization_results.csv', delimiter=',', skiprows=1)
shw = plt.imshow(C.T, extent=extent, aspect='auto', origin='lower')
bar = plt.colorbar(shw)
bar.set_label('OUR')
plt.xlabel(firstline[1])
plt.ylabel(firstline[2])

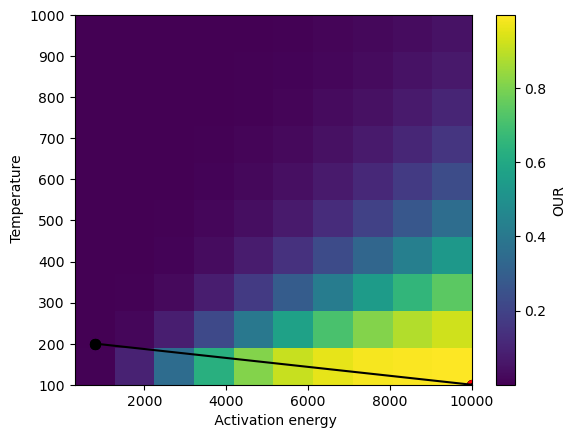

plt.scatter(opt_results[:, 1], opt_results[:, 2], s=50, c='k', marker='o')
plt.plot(opt_results[:, 1], opt_results[:, 2], color='k')
plt.scatter(opt_results[-1, 1], opt_results[-1, 2], s=50, c='r', marker='o')
opt_button.on_click(opt_button_action)
Objective "C" is in model2_out.
On each iteration running n=2 models
Optimizing Activation energy.
Optimizing Temperature.
Beginning Optimization
objective scaling: 1.0
Iter = 1: act_energy = 8.000000000e+02, temp = 2.000000000e+02, Objective = 2.068131354e-03
Iter = 2: act_energy = 8.000001445e+02, temp = 2.000000000e+02, Objective = 2.068132465e-03
Iter = 3: act_energy = 8.000000000e+02, temp = 2.000000134e+02, Objective = 2.068130941e-03
Iter = 4: act_energy = 1.000000000e+04, temp = 1.000000000e+02, Objective = 9.999402073e-01
Iter = 5: act_energy = 9.999999855e+03, temp = 1.000000000e+02, Objective = 9.999402072e-01
Iter = 6: act_energy = 1.000000000e+04, temp = 1.000000134e+02, Objective = 9.999402072e-01
message: Optimization terminated successfully
success: True
status: 0
fun: -483.49937035268016
x: [ 1.000e+00 0.000e+00]
nit: 2
jac: [-3.373e-01 3.129e+00]
nfev: 6
njev: 2
